Electric Deck Rust Remover

Product Specifications

IMPA Code:/The reference model	Product Description and Configuration	Remark	NG:/kg	MEAS:cm

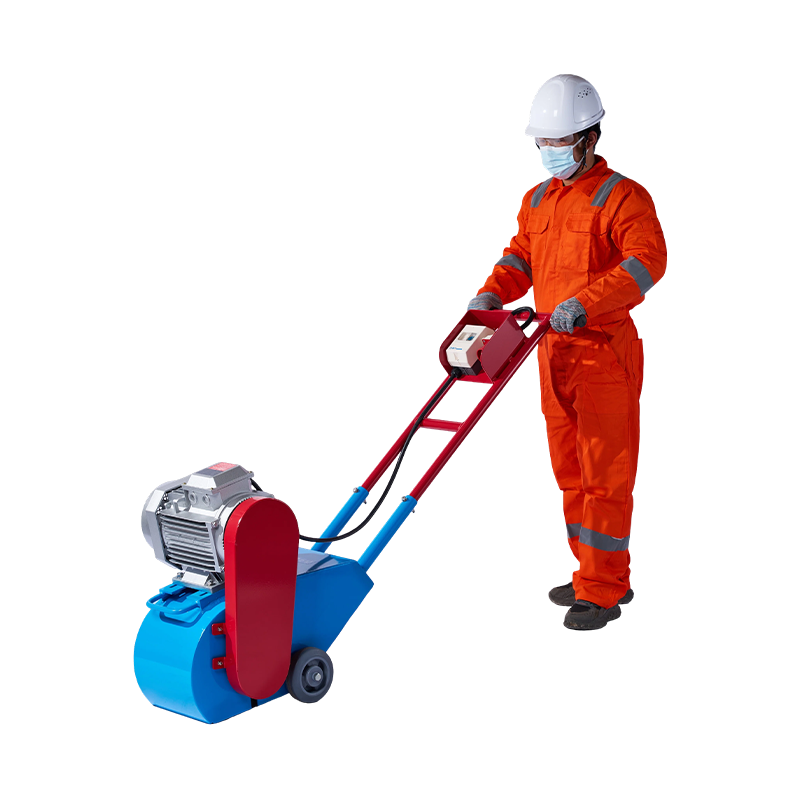

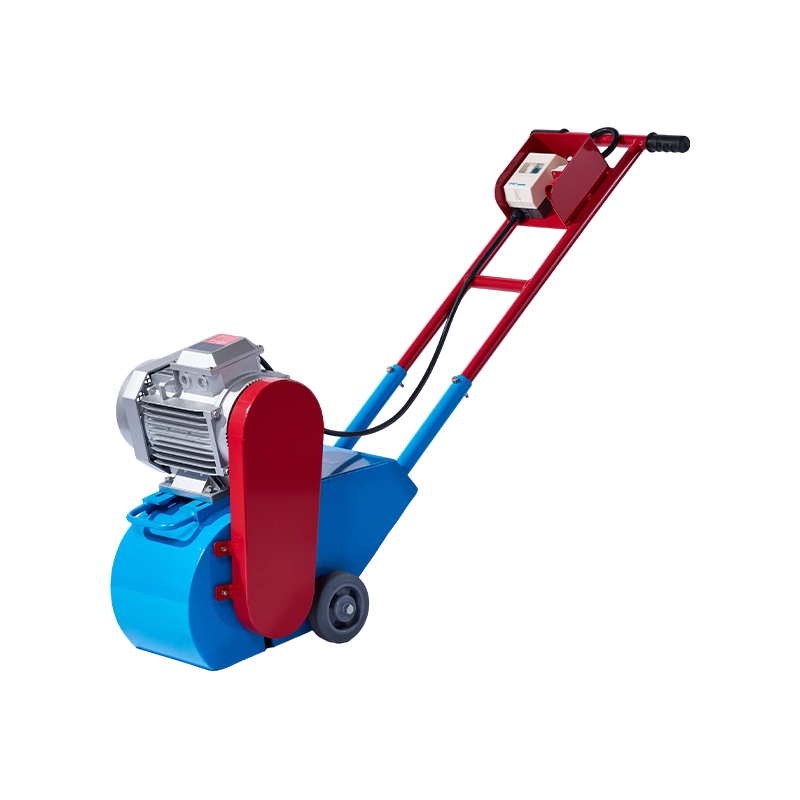

TD-2000E / DS-2000E （591205, 591206）	Electric Deck Scaler 220V (50/60Hz 3P 5.5KW) , 440V (60Hz 3P 5.5W), Working surface width 200mm, 50m power cord, surface treatment grade ST3 (SSPC-SP11). Four rust- removing chain drums are pre-installed on the machine before leaving the factory, and it is packed in export- grade wooden cases. The reference rust-removing area per hour is about 28㎡.	100	120	945285

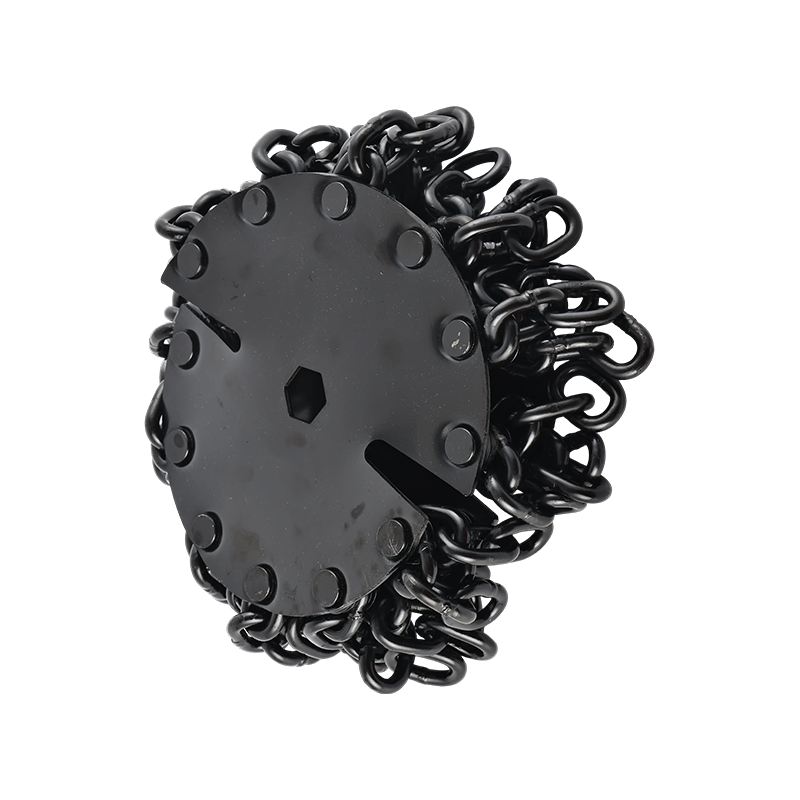

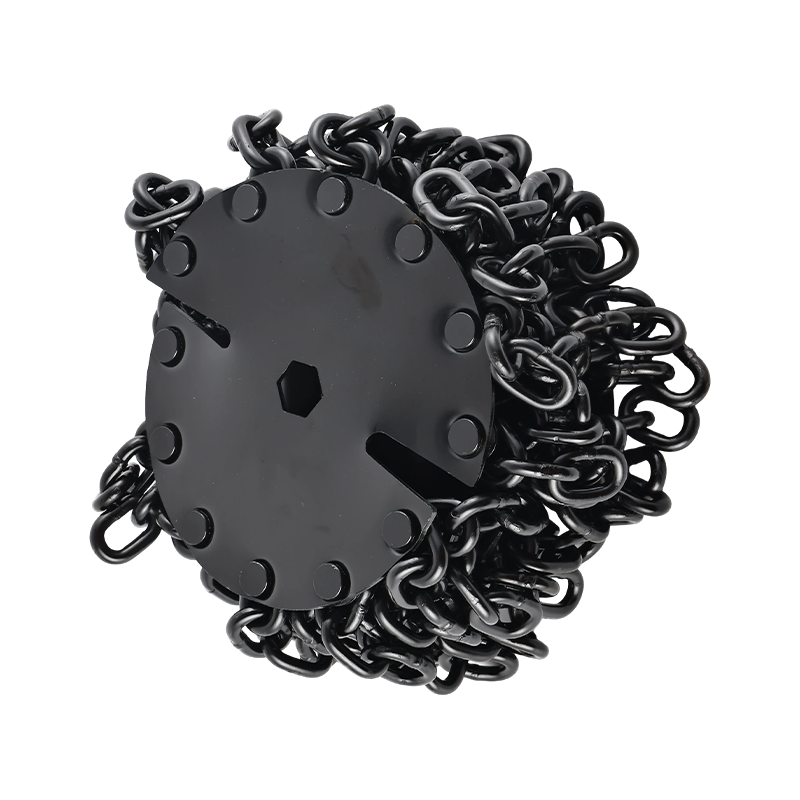

591209 （200-0156）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Chain Drum, Outer diameter 315mm, 22mm hexagonal hole, 7mm chain, surface electrophoresis, a set of 4		4.75*4= 19kg/set	2925.525.5

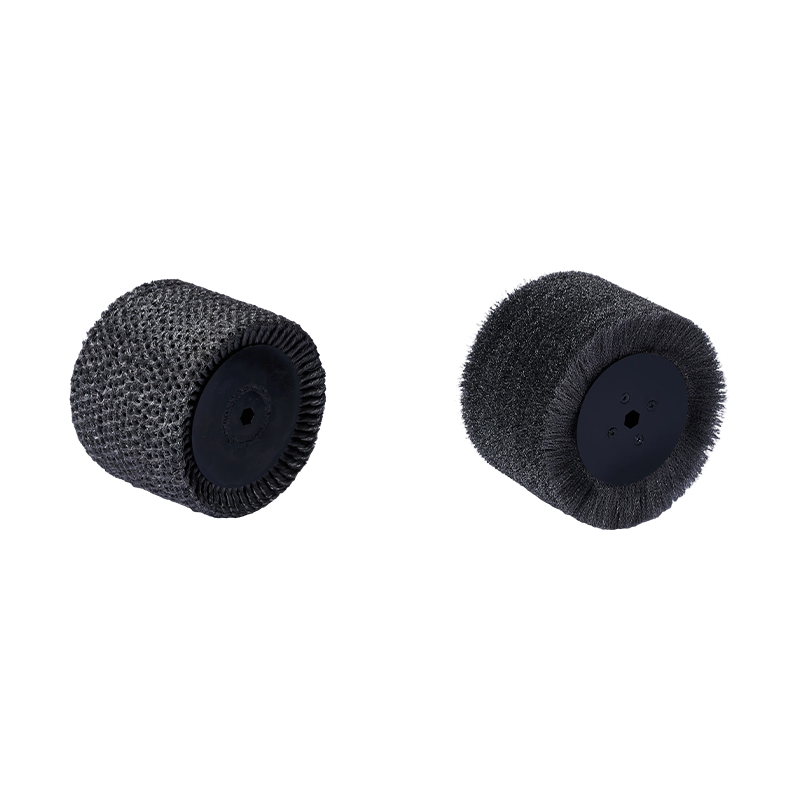

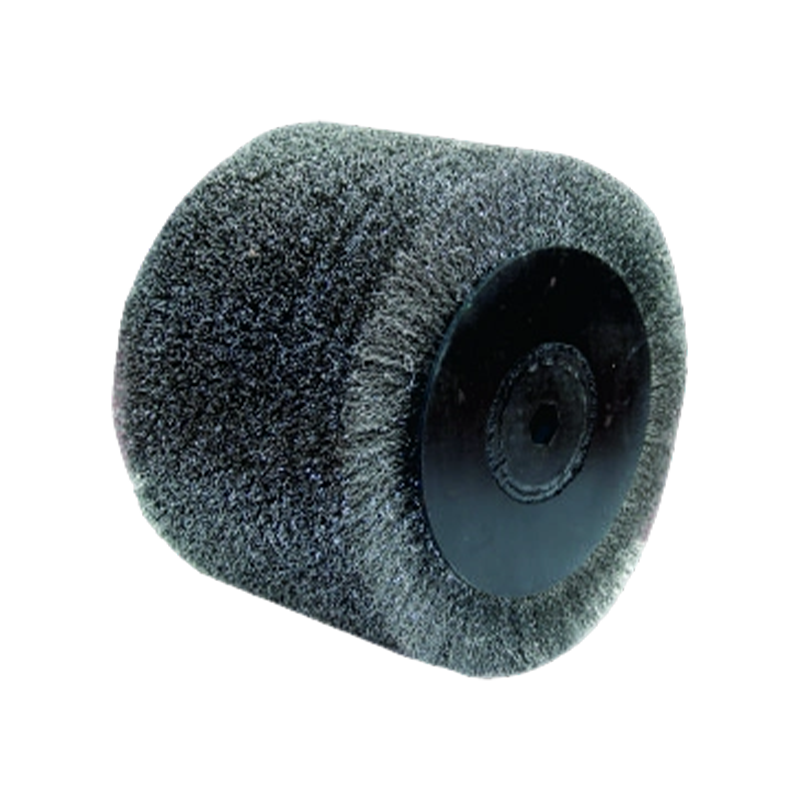

591807 （200-0158）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Curly Wire Brush， Outer diameter 285mm, 22mm hexagonal hole, 0.4 mm steel wire	Manganese Steel	12.8
591807 （200-0158）		SUS 304

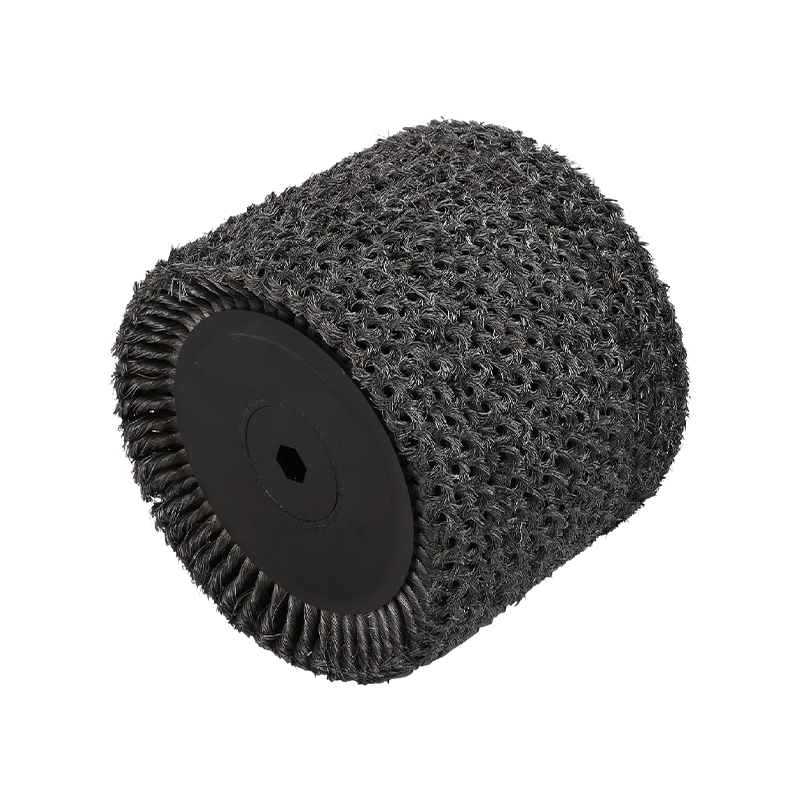

591807C	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Twisted Wire Brush， Outer diameter 285mm, 22mm hexagonal hole, 0.5 mm steel wire	Manganese Steel	24

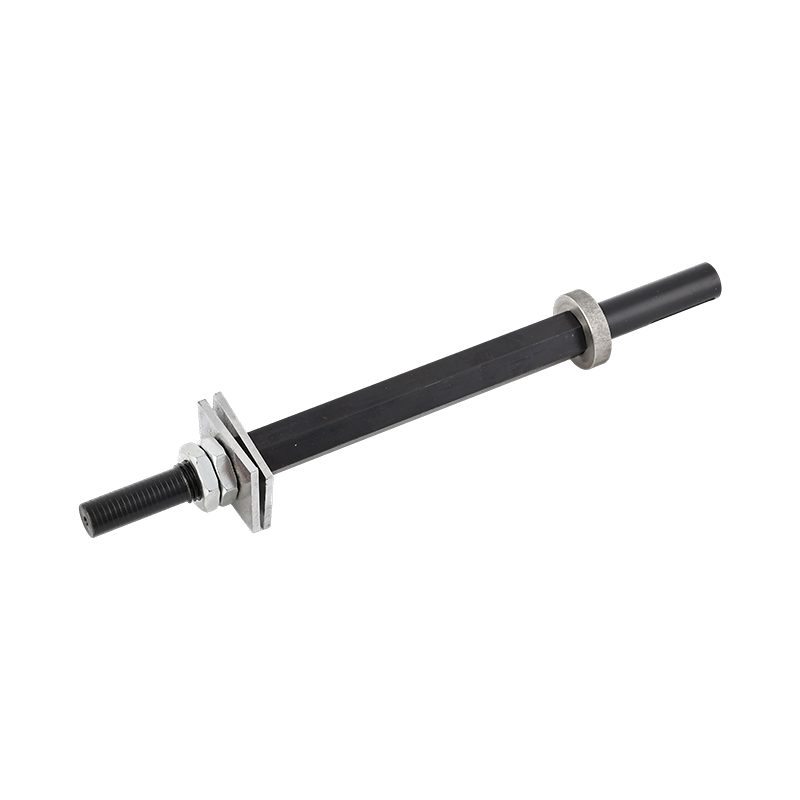

591810 （200-2300）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Chain Drum Spindle Kit		1.363
591808 （200-0170）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal 17mm Bearing Group		0.36
591809 （200-0180）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal 20mm Bearing Group		0.593
TD- PL09538	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Motor Pulley Kit		1
TD- PL13220（200-2220）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Chain Drum Pulley Kit		2.26
TD- PD1077（200-0112）	TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Toothed Belt Set Use: Used for the link between the motor and the derusting head, consisting of two XPZ1077 toothed belts		0.15
